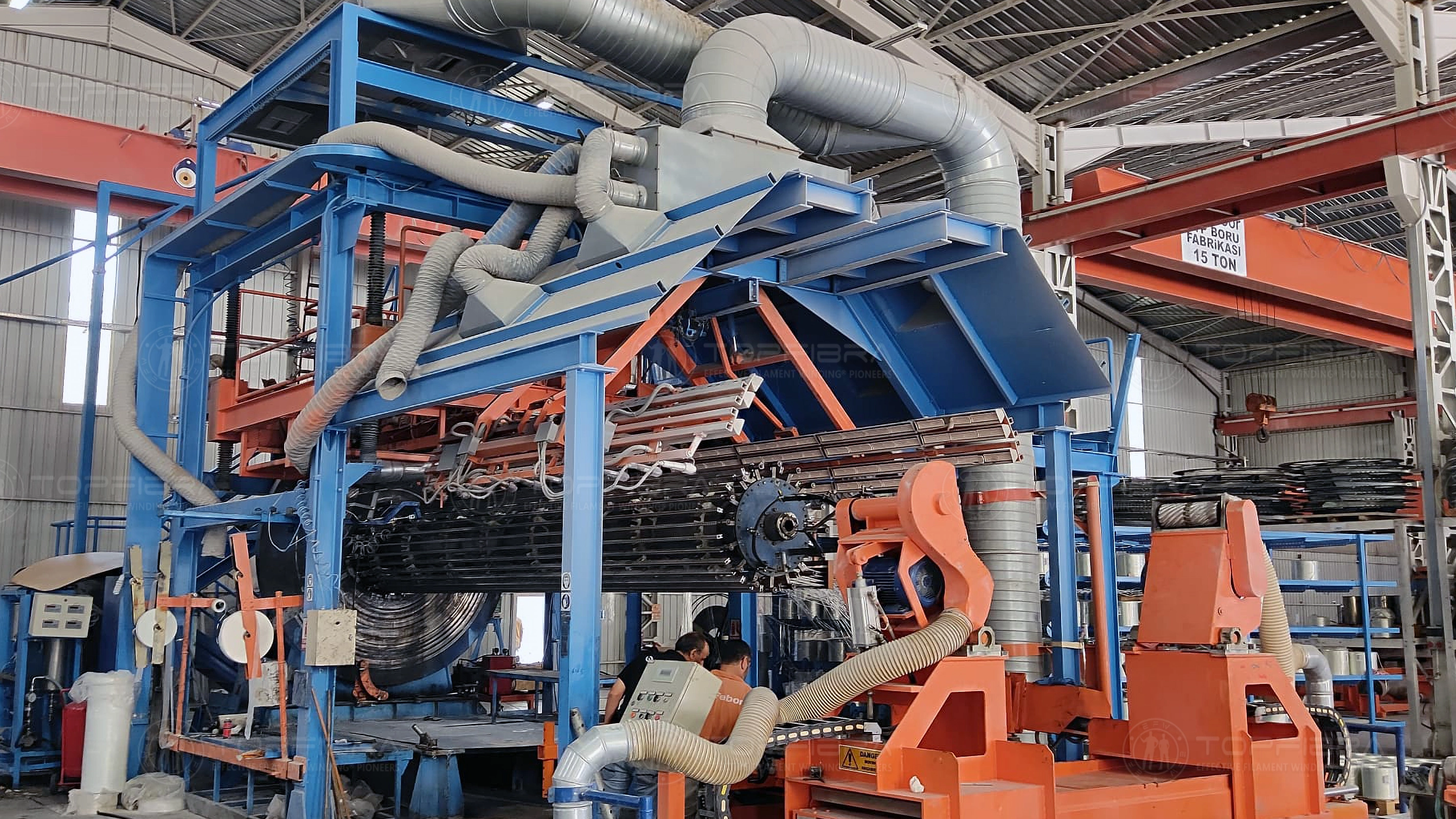

A standard continuous filament winder for glass-reinforced pipes is an industrial equipment designed for the production of composite pipes.
This equipment is primarily used in the manufacturing of fiberglass-reinforced pipes for various applications, including sewage systems, chemical processing, and the oil and gas industries.
Here's a detailed description of the key features and functions:
-
Material Handling System:
The equipment is equipped with a material handling system that manages the continuous supply of glass filament rovings and resin, ensuring a consistent and controlled feed during the winding process.
-
Mandrel System:
A rotating mandrel serves as the core around which the continuous filament winding takes place. The mandrel is customizable to achieve the desired pipe diameter and specifications.
-
Fiber Placement System:
Fiber placement system precisely arranges the glass filaments onto the mandrel in a predetermined pattern. This system ensures optimal fiber orientation and distribution to enhance the mechanical properties of the finished composite pipe.
-
Resin Impregnation System:
Resin impregnation system impregnates the applied filaments with resin (mostly polyester resin), ensuring proper wetting and adhesion between the glass fibers. This step is crucial for achieving a strong and homogeneous composite structure.
-
Curing Station:
After the winding and impregnating process, the composite structure passes through a curing station where the resin undergoes polymerization and hardening. This results in the formation of a rigid and durable pipe structure.
-
Automated Controls and Monitoring:
The equipment is equipped with control systems that allow operators to program and monitor various parameters, such as winding speed, tension, and resin flow. Automated controls ensure consistency and quality in the production process.
-
Safety Features:
To ensure operator safety, the continuous filament winder is equipped with safety features such as emergency stops, interlocks, and monitoring systems for temperature and pressure.
